Alhambra Handleset

Lifetime mechanical warranty | Five years finish warranty

General Specifications (for full product specs download the forms below)

• ANSI A156.2 Grade 2
• Door Prep.: 2-⅛” Cross Bore; 5-½” C-T-C; 1” Edge
• 5-pin KW keyway; solid brass cylinder
• Latch: 1” face, ¼” radius corner, adjustable

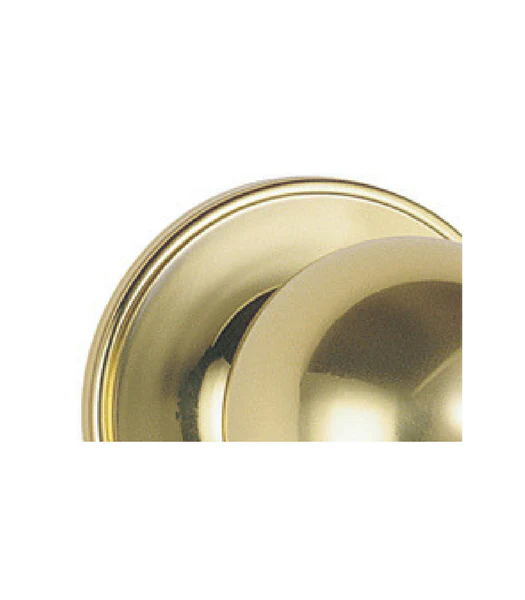

• Baron knob interior trim

Strike:

• Deadbolt: 2-¼” x 1-⅛”, square corner
• Handle: 2-¼” x 1-¾” full-lip, ¼” radius corner

Single Cylinder:
Deadbolt operated by key outside and turn-piece
inside. Latchbolt operated by thumb-piece outside and knob or lever inside.
Double Cylinder:
Deadbolt operated by key on both sides. Latchbolt operated by thumb-piece outside and knob or lever inside.
Dummy:
Handle and knob or lever act as pull only. No
operation.

All locks include an adjustable latch for 2-3/8" and 2-3/4" backsets.

Download Specification Sheet | Download Installation Sheet
